DOME TYPE ROOF DRAIN

DOME TYPE ROOF DRAIN

“RUMAX” Dome type roof drain is a latest development in Indian construction industry. These drains are used to effectively collect rain water from the roof top of the building. This will separate the debris and send the clear water to the rain harvesting arrangement.

Materials:

Cast Iron Body and Grating FG 20 Grade

Aluminium / SS304 / SS316 / on special request

Fasteners: SS304

Finish: Epoxy Painted.

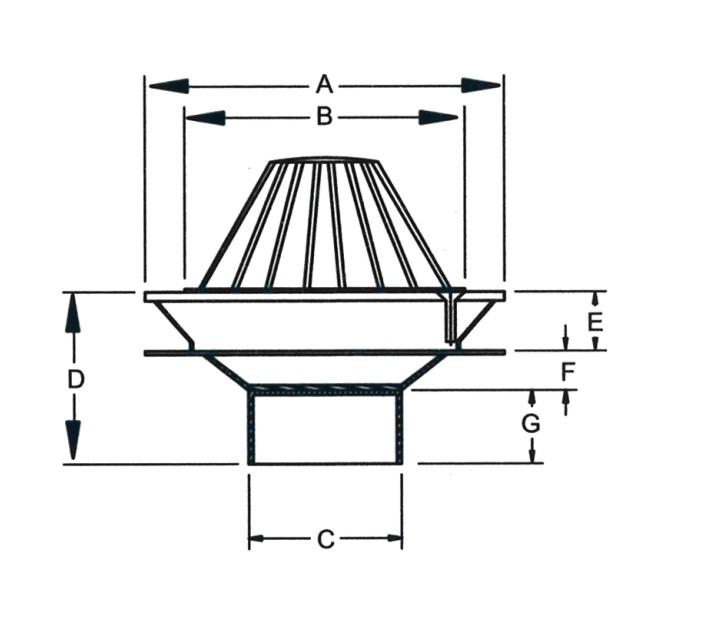

Dimensions (in mm)

Product Code

A Ø

B Ø

C (OD)

D

E

F

G

RD-D-4

Ø 240

Ø 195

Ø 109

140

45

25

70

RD-D-6

Ø 240

Ø 195

Ø 160

130

45

15

70

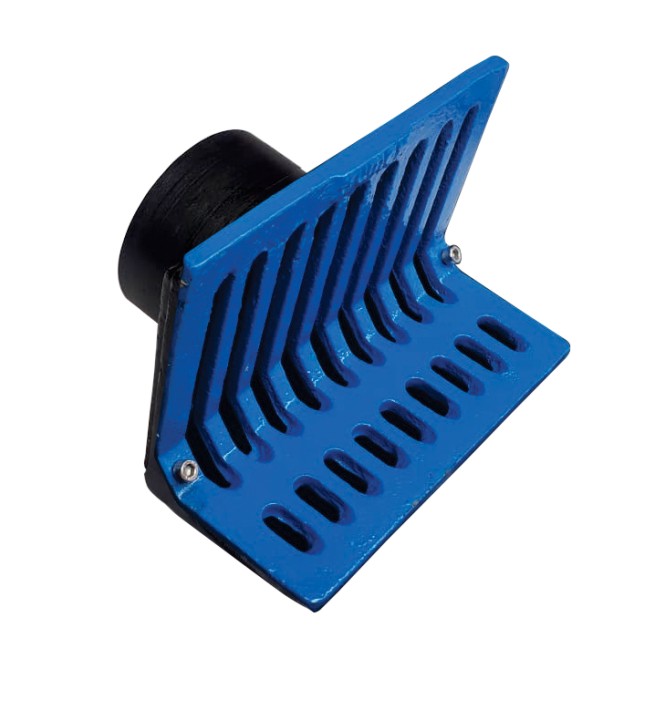

PARAPET TYPE ROOF DRAIN

PARAPET TYPE ROOF DRAIN

“RUMAX” Parapet type roof drain is a latest development in Indian construction industry. These drains are used to effectively collect rain water from the roof top of the building. These drains are installed in the junction of roof and parapet. This will separate the debris and send the clear water to the rain harvesting arrangement.

Materials:

Cast Iron Body and Grating FG 20 Grade

Aluminium / SS304 / SS316 / on special request

Fasteners: SS304

Finish: Epoxy Painted.

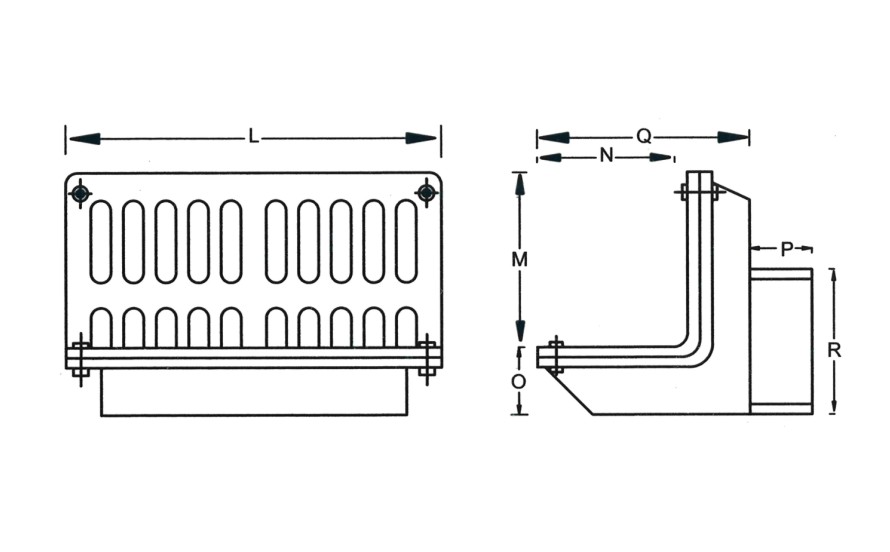

Dimensions (in mm)

Product Code

R

L

M

N

O

P

Q

RD-P-4

Ø 109

230

125

90

55

75

175

RD-P-6

Ø 160

260

180

145

60

75

190
