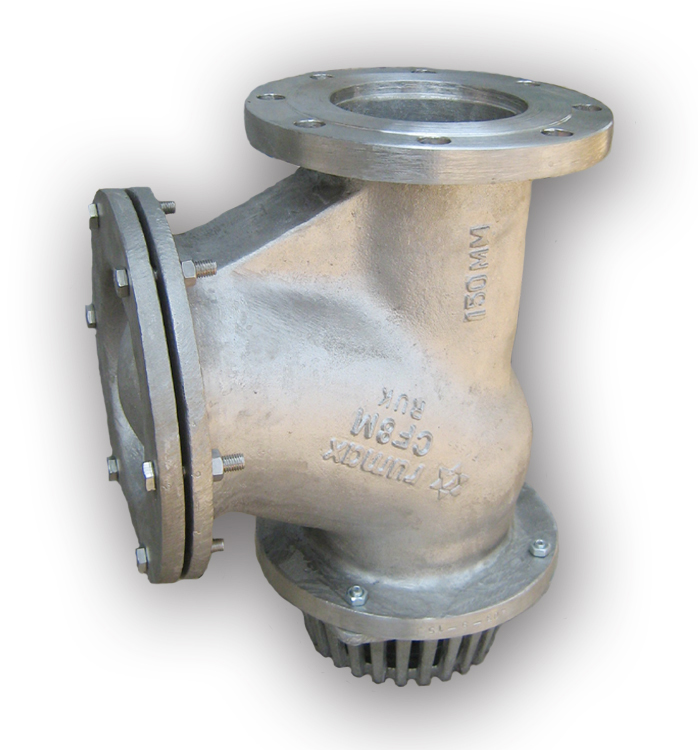

STAINLESS STEEL FOOT VALVE (FLANGED END)
| PRINCIPLE OF RUMAX STAINLESS STEEL FOOT VALVE

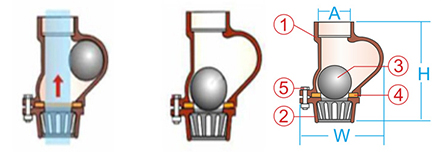

| RUMAX has involved in a reinforced rubber coated ball to arrest flow media in return condition. This ball moves totally out of the flow path when the pumping is on, to give minimum head losses (see Figure). The spherical rubber coated ball seals perfectly on the rounded valve seat ensuring a totally leak proof sealing.
|
|
MATERIALS
| * Stainless Steel Body & Strainer
* Nitrile Rubber Coated Ball
* 40mm - 300mm
* Stainless Steel Seat Ring
|
 |
|
ADVANTAGES OF BALL FOOT VALVE CATINGS
|
* Lower power consumption
* Larger solid handling capacity
* Self cleaning, Non-Clogging
* Perfect Sealing
* Low pressure drop
| * Maintenance free
* Replacement of spares is a minutes job
* Works excellently in muddy / clear water,
viscous liquid, paper stock, slurries |
|
PRESSURE RATING
|
* 40mm to 300mm PN 0.6
|
|
INSTALLATION
|
* Vertical / Inclined
 |
|
| Valve Dimensions ( Size in mm )
Size |
40mm |
50mm |
65mm |
80mm |
100mm |
125mm |
150mm |
200mm |
250mm |
300mm |
H |
160 |
190 |
235 |
270 |
315 |
380 |
450 |
545 |
760 |
860 |
W |
135 |
165 |
200 |
230 |
275 |
330 |
380 |
505 |
610 |
730 |
|

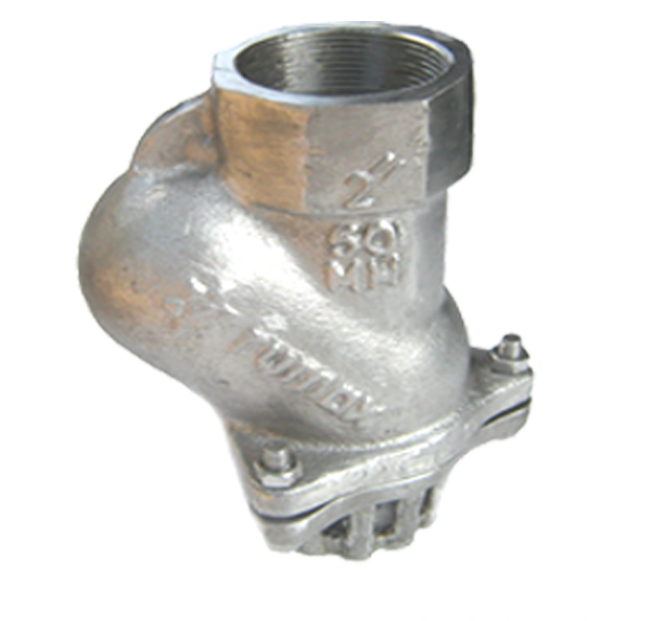

STAINLESS STEEL FOOT VALVE (THREADED END)
|
|
MATERIALS
| * Stainless Steel Body & Strainer
* Nitrile Rubber Coated Ball
* Nitrile Rubber Seat ring
* Stainless Steel Seat Ring
|
 |
|
PRESSURE RATING
|
* 25mm to 100mm PN 0.6
|
|
INSTALLATION
|
* Vertical / Inclined
|
|
| Valve Dimensions ( Size in mm )
Size |
25mm |
32mm |
40mm |
50mm |
65mm |
80mm |
100mm |
H |
145 |
145 |
160 |
195 |
230 |
265 |
315 |
W |
110 |
110 |
120 |
150 |
185 |
220 |
250 |
|

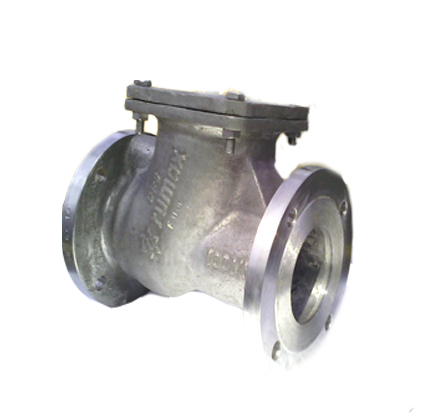

STAINLESS STEEL CHECK VALVE (NRV) (FLANGED)
| PRINCIPLE OF RUMAX STAINLESS STEEL CHECK VALVE (NRV)

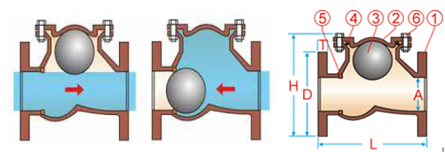

| RUMAX Ball Type Check Valve (NRV) has involved in a reinforced rubber coated ball to arrest flow media in return condition. This ball moves totally out of the flow path when the pumping is on, to give minimum head losses (see Figure). The spherical rubber coated ball seals perfectly on the rounded valve seat ensuring a totally leak proof sealing.
|
|
MATERIALS
| * Stainless Steel Body & Strainer
* Nitrile Rubber Coated Ball
* Stainless Steel Seat Ring
|
 |
ADVANTAGES OF STAINLESS STEEL CHECK VALVE
|
* Lower power consumption
* Larger solid handling capacity
* Self cleaning, Non-Clogging
* Perfect Sealing
* Low pressure drop
| * Maintenance free
* Replacement of spares is a minutes job
* Works excellently in muddy / clear water, viscous liquid, paper stock, slurries |
PRESSURE RATING
|
* 25mm to 125mm PN 1.6
* 150mm to 300mm PN 1.0
|
|
INSTALLATION
|
* Vertical / Horizontal
|
|
| Valve Dimensions ( Size in mm )
Size |
25mm |
32mm |
40mm |
50mm |
65mm |
80mm |
100mm |
125mm |
150mm |
200mm |
250mm |
300mm |
D |
120 |
120 |
135 |
150 |
180 |
200 |
225 |
250 |
280 |
340 |
405 |
480 |
L |
150 |
150 |
174 |
200 |
240 |
260 |
300 |
350 |
400 |
500 |
600 |
700 |
H |
130 |
130 |
160 |
190 |
215 |
240 |
290 |
350 |
415 |
520 |
610 |
730 |
T |
15 |
15 |
15 |
18 |
19 |
21 |
23 |
23 |
23 |
23 |
28 |
30 |
|
STAINLESS STEEL CHECK VALVE (THREADED END)
|
|
MATERIALS
| * Stainless Steel Body & Strainer
* Nitrile Rubber Coated Ball
* Nitrile Rubber Seat ring
* 25mm- 100mm
|
| |
|
PRESSURE RATING
|
* 25mm to 100mm PN 0.6
|
|
INSTALLATION
|
* Vertical / Horizontal
|
|
| Valve Dimensions ( Size in mm )
Size |
25mm |
32mm |
40mm |
50mm |
65mm |
80mm |
100mm |
H |
130 |
130 |
150 |
190 |
220 |
255 |
305 |
W |
115 |
115 |
125 |
150 |
185 |
220 |
245 |
|
|
