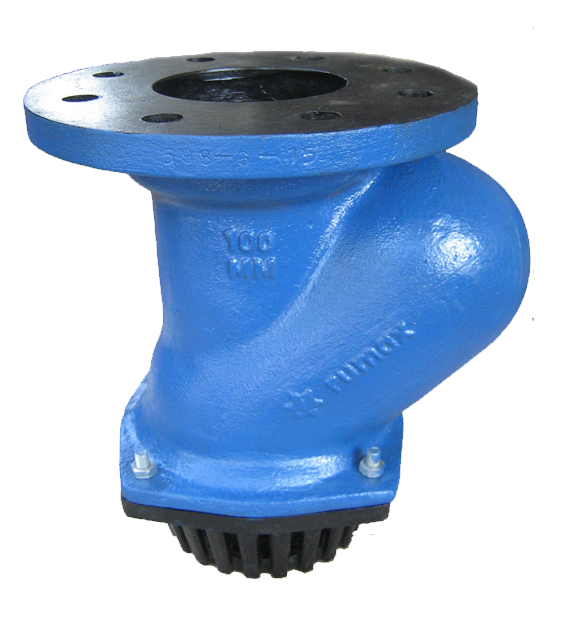

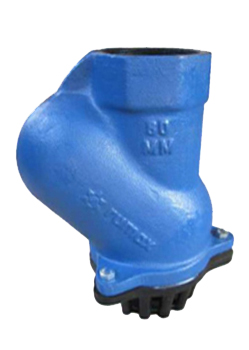

| PRINCIPLE OF RUMAX BALL TYPE FOOT VALVE
|
RUMAX has involved in a reinforced rubber coated ball to arrest flow media in return condition. This ball moves totally out of the flow path when the pumping is on, to give minimum head losses (see Figure). The spherical rubber coated ball seals perfectly on the rounded valve seat ensuring a totally leak proof sealing.
|
|
MATERIALS
|
* Cast Iron body & Strainer (SS on request)
* Nitrile Rubber Coated Ball
* 40mm - 150mm Nitrile Rubber Seat ring
* 200mm- 300mm LT Bronze Seat Ring
|
 |
ADVANTAGES OF BALL TYPE FOOT VALVE
|
* Lower power consumption
* Larger solid handling capacity
* Self cleaning, Non-Clogging
* Perfect Sealing
* Low pressure drop
| * Maintenance free
* Replacement of spares is a minutes job
* Works excellently in muddy / clear water,
viscous liquid, paper stock, slurries |
PRESSURE RATING
|
* 40mm to 300mm PN 0.6
|
|
INSTALLATION
|
* Vertical / Inclined
|
|
|
Valve Dimensions ( Size in mm )
Size |
40mm |
50mm |
65mm |
80mm |
100mm |
125mm |
150mm |
200mm |
250mm |
300mm |
H |
160 |
190 |
235 |
270 |
315 |
380 |
450 |
545 |
760 |
860 |
W |
135 |
165 |
200 |
230 |
275 |
330 |
380 |
505 |
610 |
730 |
Weight (Kgs) |
3.0 |
6.0 |
7.0 |
12.0 |
18.0 |
23.0 |
35.0 |
85.0 |
170.0 |
227.0 |
|
